How to Measure a Kitchen Sink: Complete Size Guide
Knowing how to measure a kitchen sink correctly can prevent one of the most expensive mistakes in a kitchen update: ordering a beautiful sink that does not fit the cabinet, countertop opening, faucet, or plumbing below it.
A complete sink measurement includes more than width and depth. You should record the sink’s overall exterior dimensions, bowl dimensions, countertop cutout, cabinet interior, rim or apron, drain position, and the space required for plumbing and accessories. This guide explains each measurement for drop-in, undermount, farmhouse, single-bowl, and double-bowl kitchen sinks.
Kitchen Sink Measurements at a Glance
Record measurements in the same order used on the product page, normally width × front-to-back depth × bowl height. Because naming conventions can vary, compare your measurements with the manufacturer’s dimension drawing before ordering.
| Measurement | Where to measure | Why it matters |
|---|---|---|
| Overall width | Outer left edge to outer right edge | Determines whether the sink fits inside the base cabinet |
| Overall front-to-back depth | Outer front edge to outer back edge | Confirms countertop, faucet, and backsplash clearance |
| Bowl depth | Inside bottom of bowl to the top rim | Affects capacity and under-sink plumbing space |
| Countertop cutout | Across the existing opening | Important when replacing a sink without replacing the counter |
| Cabinet size | Inside the sink base cabinet | Shows the actual usable space available for the sink |
| Rim or flange | From bowl edge to outer sink edge | Affects mounting, reveal, and cutout dimensions |
| Drain location | From drain center to fixed reference edges | Helps confirm plumbing and disposal compatibility |
First, Identify Your Sink Installation Type
How you measure depends on how the sink is mounted. Identify the installation type before recording dimensions.
- Drop-in or top-mount sink: The sink is lowered into the countertop and its visible rim rests on top.
- Undermount sink: The sink is secured below the countertop, leaving the counter edge visible around the opening.
- Farmhouse or apron-front sink: The front of the basin is exposed and the cabinet face is cut or built around it.
- Flush-mount sink: The rim is installed nearly level with the countertop and requires precise fabrication.
- Workstation sink: The bowl includes ledges for fitted accessories, making exact interior and exterior dimensions especially important.
If you are selecting a warm metal finish, compare RiadKesh’s copper kitchen sinks and brass kitchen sinks. Both collections include different sizes and installation styles, so the mounting method should be confirmed on the individual product page.
What You Need to Measure a Kitchen Sink
- A rigid tape measure
- Pencil or removable marker
- Paper or a measurement worksheet
- Flashlight for inspecting the cabinet interior
- Straightedge or level
- Camera or phone for reference photos
- Existing sink template or specification sheet, if available
Measure every dimension at least twice. Record both inches and centimeters when ordering a handmade or custom sink so there is less chance of a conversion error.
How to Measure a Kitchen Sink Step by Step

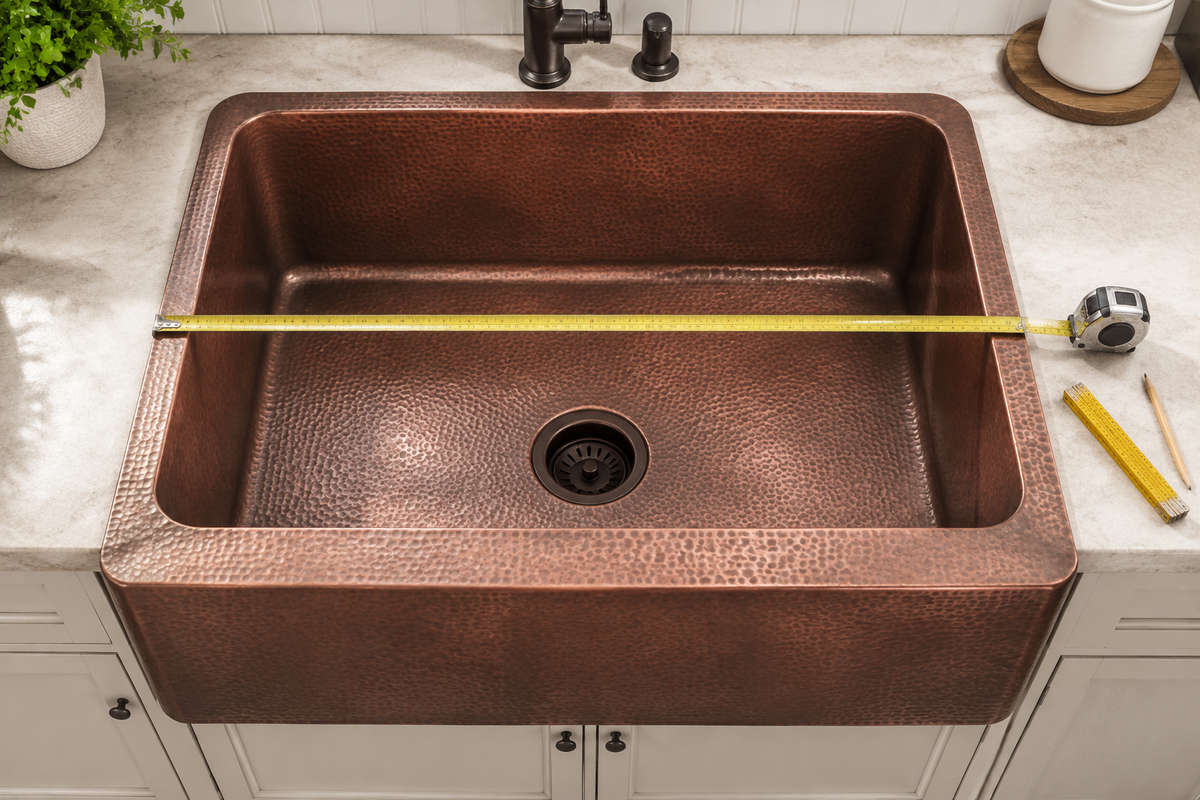

1. Measure the overall sink width
Measure horizontally from the farthest outside point on the left to the farthest outside point on the right. For a drop-in sink, include the visible rim. For an undermount sink, measure the complete exterior body rather than only the visible countertop opening.
On a double-bowl sink, measure across the complete fixture, not each bowl separately. A product such as a copper farmhouse double-bowl sink is sized by its overall exterior dimensions even though it contains two basins.
2. Measure from front to back
Measure from the outermost front edge to the outermost back edge. Do not measure only the inside of the bowl. This measurement determines whether the sink leaves enough counter space for the faucet, backsplash, window trim, and any rear accessory holes.
If you are replacing a sink, also measure from the back of the existing cutout to the backsplash or wall. A deeper sink may fit the cabinet width but leave insufficient space for the faucet hardware behind it.
3. Measure the bowl depth
Place a straightedge across the top of the sink, then measure vertically from the underside of the straightedge to the lowest interior point of the bowl. Do not measure along a curved or sloped wall.
Deeper bowls can hold larger cookware, but they also extend farther into the cabinet. Confirm clearance for the drain assembly, P-trap, waste disposal, water filter, pull-out faucet hose, and storage below.
4. Measure the interior bowl dimensions
Measure the usable interior width and front-to-back dimension at the top of the bowl. If the walls slope, the bottom dimensions will be smaller. Record both sets when fitted grids, cutting boards, or other sink accessories are planned.
For a double-bowl sink, measure each bowl individually and note the divider location and height. A 50/50 design provides similar bowl sizes, while other layouts may dedicate more space to one side.
5. Measure the rim or flange
The rim is the material surrounding the bowl. Measure from the inside edge of the bowl to the outer edge of the sink on every side because the rim width may not be identical throughout.
This measurement is particularly important for drop-in sinks, where the rim must overlap and support the countertop opening. It also matters for undermount installations because the fabricator needs to plan the countertop reveal.
6. Measure the existing countertop cutout
If the countertop will remain in place, measure the opening rather than relying only on the old sink’s advertised size. Measure the cutout left to right and front to back from underneath when possible.
Also record:
- The corner radius of the opening
- The distance from the cutout to the front counter edge
- The distance from the cutout to the backsplash
- The position and number of faucet or accessory holes
- Any clips, rails, or support structures beneath the counter
A sink with the same nominal width as the old one can still require a different cutout. Always compare the actual sink and manufacturer’s template with the opening before cutting or altering the countertop.
7. Measure the sink base cabinet
Open the cabinet and measure the usable interior width from one inside wall to the other. Do not use only the cabinet’s advertised exterior width because side panels, face frames, hinges, supports, and neighboring cabinets reduce the available space.
Next, measure the usable front-to-back depth and vertical clearance. Note any center stile, drawers, shelves, or structural rails that interfere with the sink.
Manufacturers normally specify a minimum cabinet size separately from the sink dimensions. Treat that specification as essential rather than estimating the required cabinet from sink width alone. Official sink documentation commonly lists both overall dimensions and minimum cabinet size for this reason.
8. Record the drain position
Measure from the center of the drain opening to the back, front, and nearest side of the sink. The drain may be centered, rear-set, or offset toward one side.
An offset drain can free storage space in part of the cabinet, but the existing waste connection may need to be reconfigured. When replacing a sink, compare the old and new drain positions before assuming the plumbing will align.
9. Check faucet and backsplash clearance
Measure the space between the back of the sink or cutout and the backsplash, wall, or window trim. Confirm that there is enough room for:
- The faucet base and mounting hardware
- Handles to move through their full range
- A pull-down hose and counterweight beneath the sink
- Soap dispensers, filtered-water taps, or air switches
- Comfortable cleaning around the faucet
If you plan to coordinate the sink with a bridge faucet, check the faucet’s mounting-hole spacing as well as the available rear deck space. The unlacquered brass bridge kitchen faucet is one example of a fixture whose installation requirements should be planned together with the sink and countertop.
10. Check under-sink plumbing clearance
Measure vertically from the underside of the countertop to the highest fixed obstruction inside the cabinet. Then inspect the horizontal space around the supply valves and waste pipe.
Account for the sink bowl depth plus the drain fitting and any disposal unit. A sink can fit perfectly from above but collide with plumbing, a cabinet shelf, or a pull-out waste system underneath.
How to Measure for a Replacement Kitchen Sink
When replacing a sink without replacing the countertop, the existing opening becomes one of your main limits.
- Identify whether the current sink is drop-in or undermount.
- Measure the existing sink’s full exterior dimensions.
- Measure the countertop cutout independently.
- Measure the usable cabinet interior.
- Record the drain position and plumbing height.
- Photograph the mounting clips, supports, faucet holes, and underside.
- Compare all measurements with the new sink’s dimension drawing and cutout template.
A replacement drop-in sink generally needs a rim large enough to cover the existing opening. A replacement undermount sink requires more careful comparison because the countertop edge remains visible and the new bowl must work with the existing cutout shape and reveal.
How to Measure for an Undermount Kitchen Sink
For an undermount sink, record three different dimensions:
- Overall exterior size: The complete sink body below the countertop
- Bowl opening: The visible opening measured across the countertop
- Cabinet clearance: The usable space for the bowl, rim, clips, rails, and plumbing
The reveal describes how the countertop meets the sink edge:
- Positive reveal: Part of the sink rim is visible.
- Zero reveal: The countertop edge aligns with the bowl edge.
- Negative reveal: The countertop extends slightly over the bowl.
The chosen reveal affects the cutout dimensions. It should be agreed with the countertop fabricator before cutting. For handmade metal designs, browse this hammered copper undermount kitchen sink and confirm the selected exterior size before fabrication.
How to Measure for a Farmhouse Sink
A farmhouse or apron-front sink requires additional cabinet measurements because the exposed apron passes through or replaces part of the cabinet front.
Measure:
- The usable cabinet interior width
- The sink’s maximum exterior width
- The apron width and height
- The complete front-to-back dimension
- The bowl depth below the countertop
- The required support-frame position
- The distance to cabinet doors and drawers below
Handmade farmhouse sinks can have subtle dimensional variation, so the cabinet and countertop should be fitted to the actual sink or its approved template. The support frame—not the countertop or plumbing—must carry the sink’s weight.
Compare the proportions of a hammered copper single-bowl farmhouse sink with a hammered brass apron-front kitchen sink when deciding which finish and bowl configuration suit the room.
Measuring for a New or Custom Kitchen Sink
If the countertop and cabinets have not yet been fabricated, begin with the cabinet plan and desired sink function. Provide the sink maker, cabinetmaker, plumber, and countertop fabricator with the same specification.
A complete custom-sink request should state:
- Overall exterior width × front-to-back depth × height
- Installation type
- Single- or double-bowl layout
- Interior bowl dimensions
- Rim width and desired undermount reveal, if applicable
- Apron width and height for a farmhouse sink
- Drain opening size and exact location
- Corner shape or radius
- Faucet and accessory-hole requirements
- Selected material and finish
Do not authorize cabinet or countertop cutting from a general product-category description. Use the measurements for the exact size ordered and, whenever possible, have the actual sink available for templating.
Common Kitchen Sink Measuring Mistakes
- Measuring only the bowl: The complete rim or apron also has to fit.
- Confusing front-to-back depth with bowl depth: These are two different measurements.
- Using the cabinet’s exterior width: The usable interior is smaller.
- Assuming nominal sink sizes are exact: Confirm the product’s actual dimension drawing.
- Ignoring corner radius: A rectangular opening may still have incompatible corners.
- Forgetting faucet clearance: The sink may leave too little space behind it.
- Ignoring plumbing below: Deep bowls and disposals need vertical clearance.
- Cutting before checking the actual sink: Templates and specifications should always be verified.
- Measuring only once: Recheck every critical dimension before ordering.
Frequently Asked Questions
What order are kitchen sink dimensions written in?
Kitchen sink dimensions are commonly shown as width × front-to-back depth × bowl height. Always check the dimension drawing because some sellers may label these measurements differently.
How do I know what size sink fits my cabinet?
Measure the cabinet’s usable interior width, front-to-back depth, and height, then compare them with the sink manufacturer’s stated minimum cabinet size. Account for face frames, supports, hinges, plumbing, and mounting hardware.
Is a 33-inch sink exactly 33 inches wide?
Not necessarily. A nominal size is a convenient category, while the exact exterior, bowl, and cutout dimensions are provided in the product specification. Use the actual dimensions when planning the cabinet and countertop.
Can I replace a kitchen sink without replacing the countertop?
Often, but the new sink must be compatible with the existing cutout, cabinet, mounting method, faucet clearance, and plumbing. Drop-in replacements can sometimes cover an existing opening more easily than undermount replacements.
How do I measure an undermount sink that is already installed?
Measure the visible countertop opening from above, then inspect from below to measure the sink’s complete exterior dimensions, rim, mounting hardware, cabinet clearance, and drain position.
Do farmhouse sinks require special cabinets?
They often require a sink base cabinet designed or modified for the apron front and a structural support frame. Confirm the apron dimensions and support requirements before cabinet fabrication.
Should I measure the sink before ordering a faucet?
Yes. The sink’s front-to-back dimension, rear deck, mounting style, and faucet-hole arrangement affect which faucets fit. Check backsplash clearance and under-counter space for mounting hardware and hoses.
Should the countertop be cut before the sink arrives?
It is safer to verify the template against the actual sink before cutting, especially for undermount, flush-mount, farmhouse, and handmade sinks. The countertop fabricator should follow the approved installation specifications.
Measure Carefully Before Choosing Your Sink
Learning how to measure a kitchen sink means checking the whole installation—not just the visible bowl. Record the exterior sink size, interior bowl, countertop cutout, usable cabinet space, rim or apron, drain position, faucet clearance, and plumbing below.
